FineVu DASH CAM
LX2000
- 3CH Full HD-HD-HD / Multi Cameras with Water-proof & IR LED / 3.5" 800 x 480 IPS LCD with touch
- Auto Night Vision / Smart Time Lapse / Road Safety Warning System (ADAS PLUS - LDWS, FVMA)
- Format Free Max / High Temperature Protection / G-Sensor Accident Detection
- Battery Discharge Prevention / PC Viewer

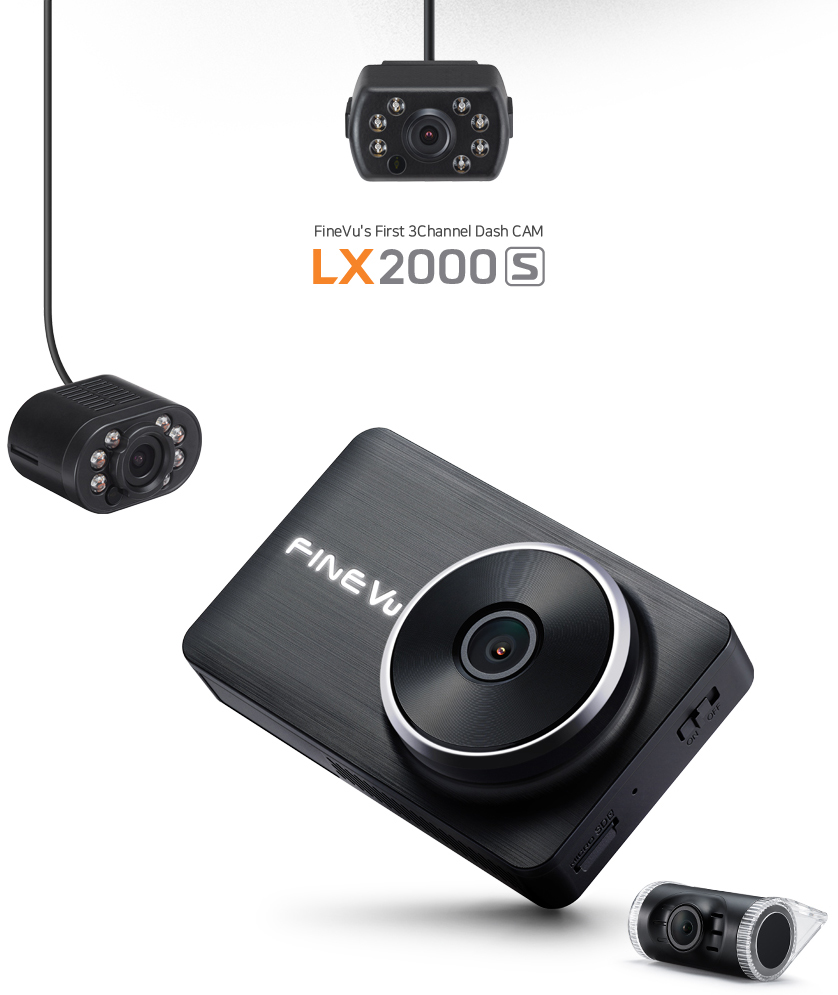

3CH COMMERCIAL FLEET DASH CAM
HIGH-RESOLUTION, MULTI-CHANNEL
NO MORE BLIND SPOT

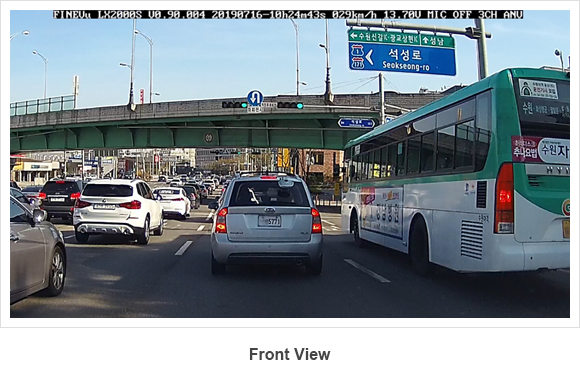

- FHD(front) resolution gives FineVu outstanding video clarity under all circumstances.

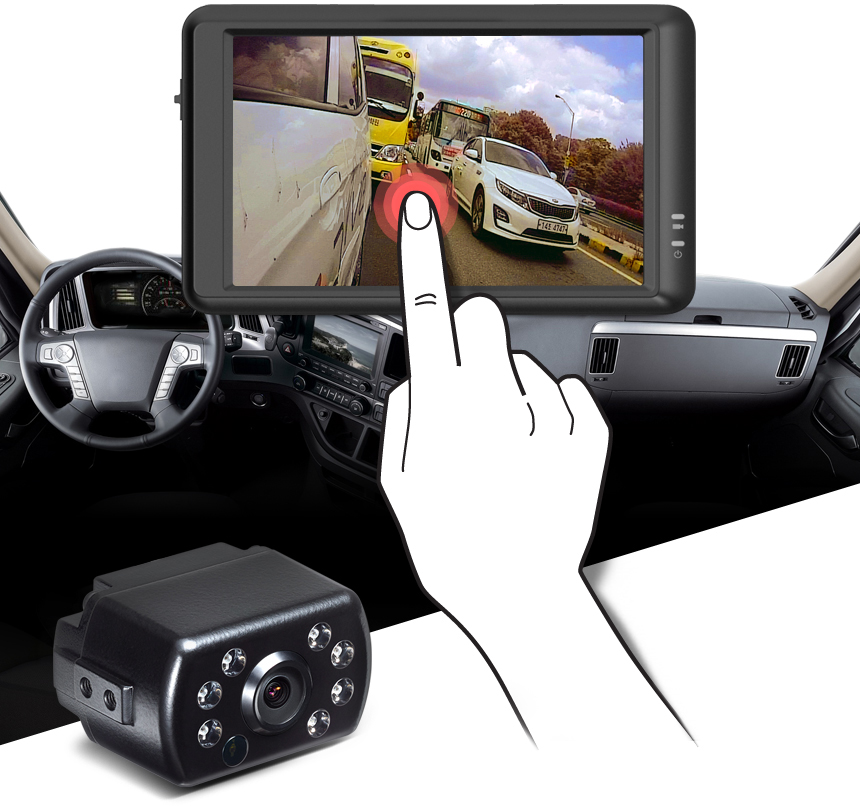

- A built-in IR sensor 6 IR LEDS of rear and side camera clearly and visibly records video at night. Waterproof Camera(IP69K) provides
all moment recorded stably in spite of inclement weather. One touch makes user access 3CH video record easily.
3CH for TRUCK

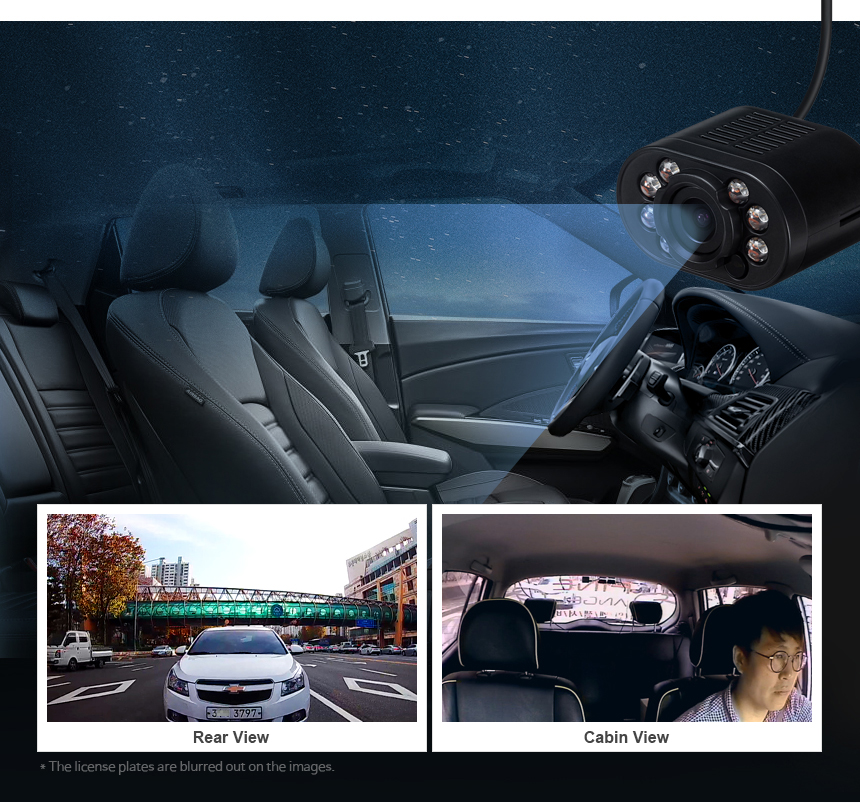

- FineVu clearly records all details of cabin view as well as front & rear view
- In addition to the front and rear camera, the cabin view camera of FineVu uses wide angle lens
to record inside of your car. A wider angle lens provides an extra level of security for driver and passengers,making it ideal for taxi
and private hire vehicle. 6 IR LEDs of cabin view camera captures clear and visible records even at night.
3CH for TRUCK
RECORD YOUR VIDEO WITHOUT BLIND SPOTS
- The 3CH camera system of LX2000S is the ultimate video and audio recording solution for trucks.
- The 3-camera setup is providing you and your business with constant video coverage
without blind spot to stay protected and provide irrefutable evidence in any situation.

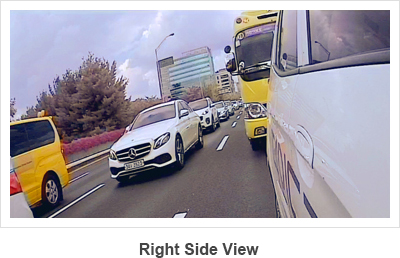

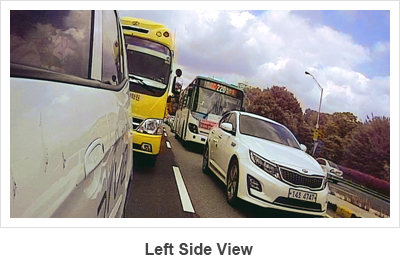

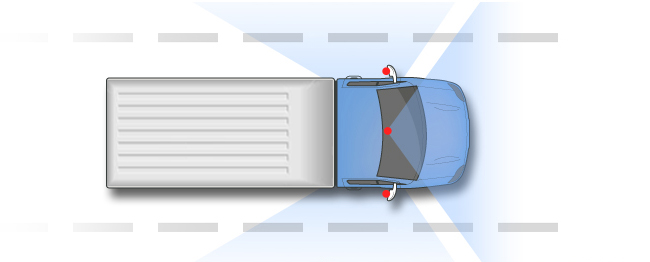

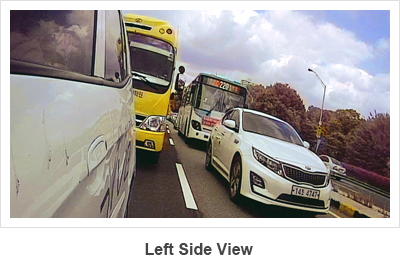

CAMERAS for BOTH SIDES(R/L)
- The 3CH camera system of LX2000 S is the ultimate video and audio recording solution for trucks.
- The 3-camera setup is providing you and your business with constant video coverage without blind spot to stay protected
and provide irrefutable evidence in any situation.

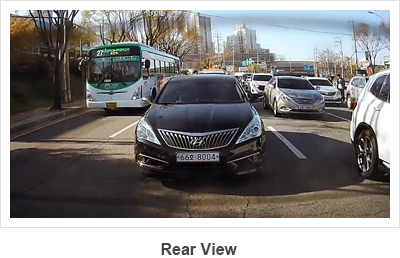

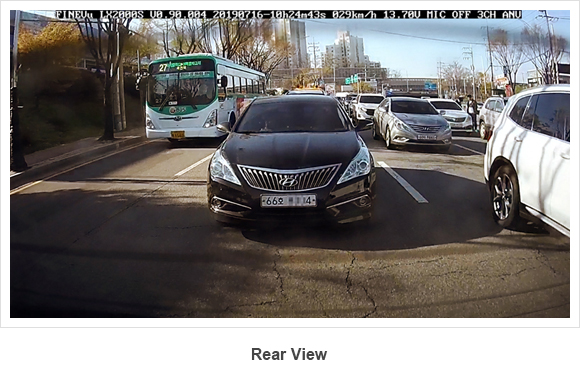

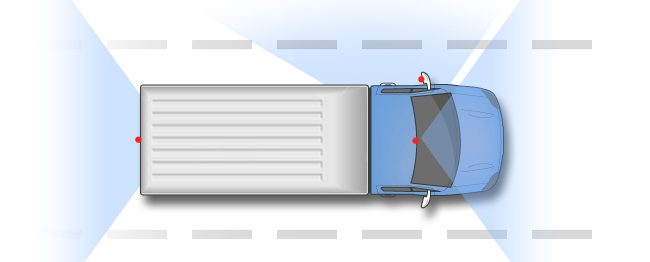

3CH CAMERAS for FRONT, REAR and SIDE
- Perfect for trucks, LX2000 S thoroughly records all directions and can be installed anywhere.
- Wherever you install cameras, LX2000 S makes all risks lower than before.

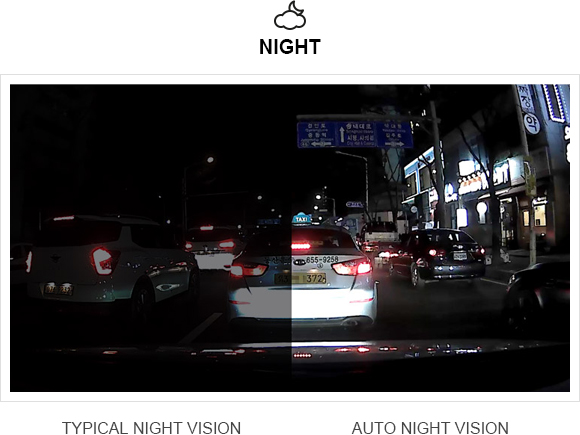

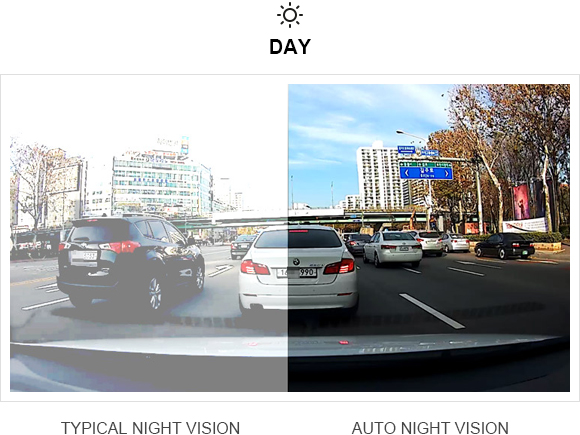

AUTO NIGHT VISION
AUTOMATICALLY FINDS OPTIMAL VIDEO QUALITY
- AUTO NIGHT VISION enables FineVu LX2000 S to record clear and balanced video in tough-to-capture environments like nighttime,
underground parking lots and tunnels, as well as very bright day light. - AUTO NIGHT VISION provides the optimal video quality (brightness and clarity) by automatic tuning in any conditions.

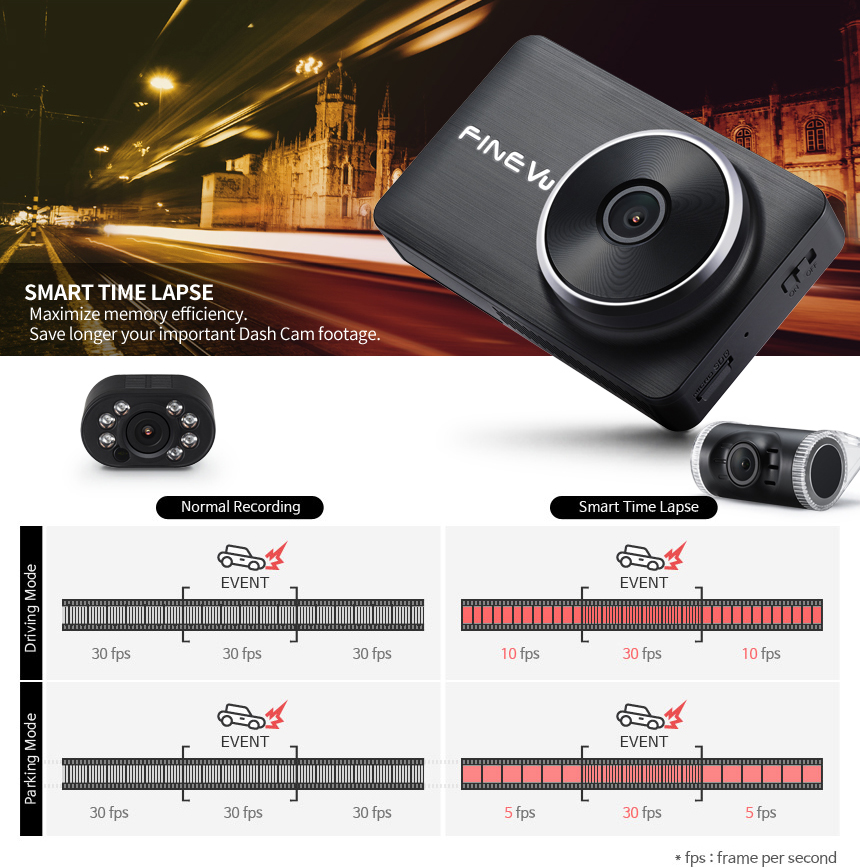

SMART TIME LAPSE
EXTREME MEMORY EFFICIENCY
- Smart Time Lapse of FineVu maximizes memory efficiency.
- It automatically reduces recording frame rate when there is no event,
while recovers full frame rate (30fps) recording when any event is detected. - Don't miss any important moments due to insufficient memory space any more!
ADAS PLUS
EXTREME MEMORY EFFICIENCY
- Smart Time Lapse of FineVu maximizes memory efficiency.
- It automatically reduces recording frame rate when there is no event,
while recovers full frame rate (30fps) recording when any event is detected. - Don't miss any important moments due to insufficient memory space any more!

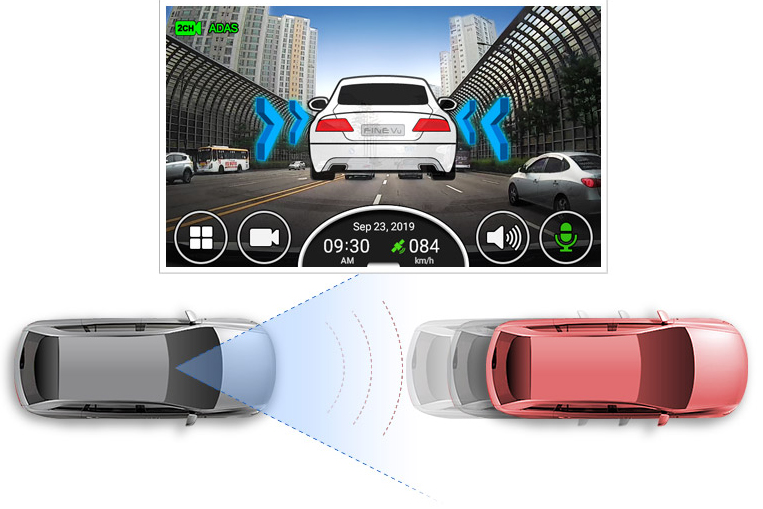

Front Vehicle Motion Alert (FVMA)
- When the car is stopped at an intersection or in traffic, FVMA informs the driver that front vehicle has started to move, and so prevents a delayed response.

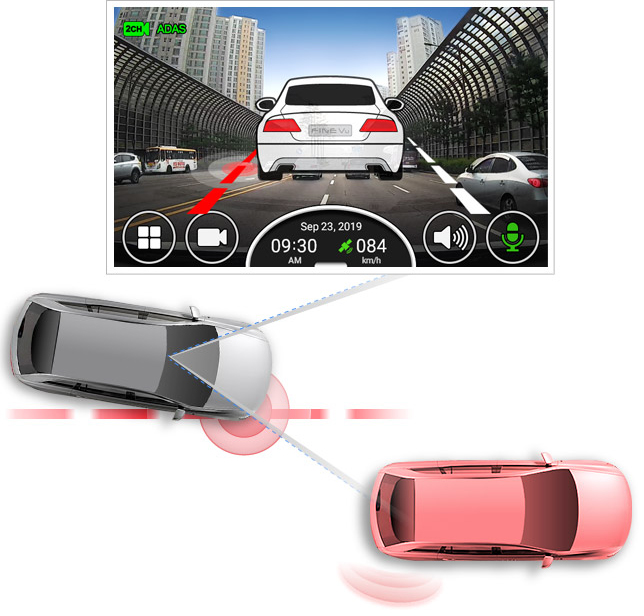

Lane Departure Warning System (LDWS)
- When your car goes off the traffic lane, LDWS detects it in real time, and alerts the driver.

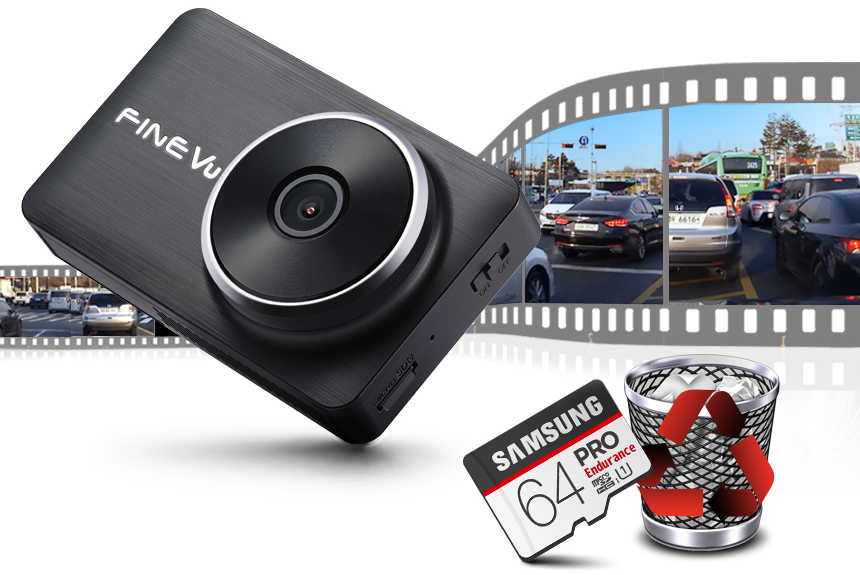

FORMAT FREE MAX
ADVANCED FORMAT FREE TECHNOLOGY
- Format Free Max technology eliminates the needs of manual reformatting the micro SD memory card,
Additionally it contributes to extending memory card lifetime and improving reliability.

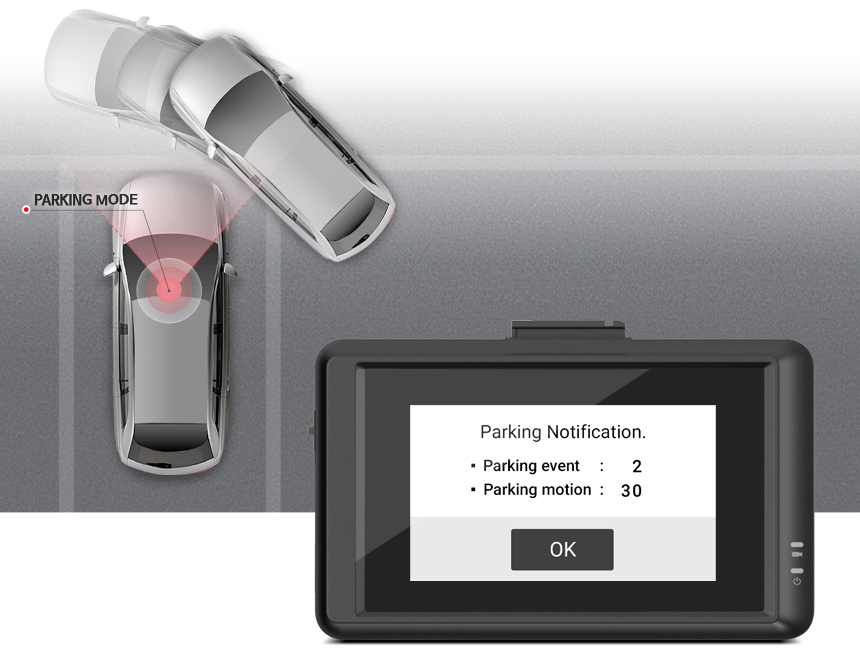

SMART PARKING EVENT REPORT
EVENT HISTORY REPORT
DURING PARKING SURVEILLANCE MODE
- When you get in the car, FineVu informs event history that has been detected while the car is parked,
making it easy to check out what happened.

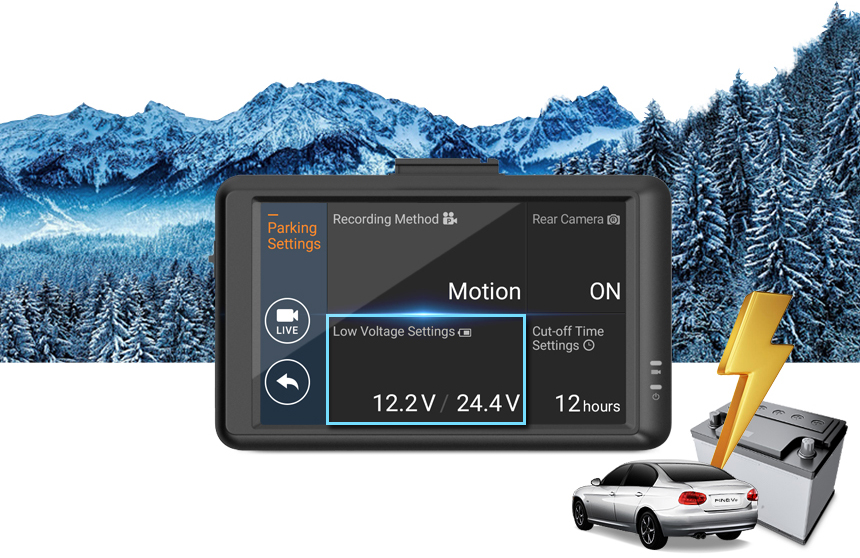

BATTERY DISCHARGE PREVENTION
- If the battery voltage of your car drops below a preset level,
FineVu automatically detects and cuts off it's own power to protect the battery of your car.

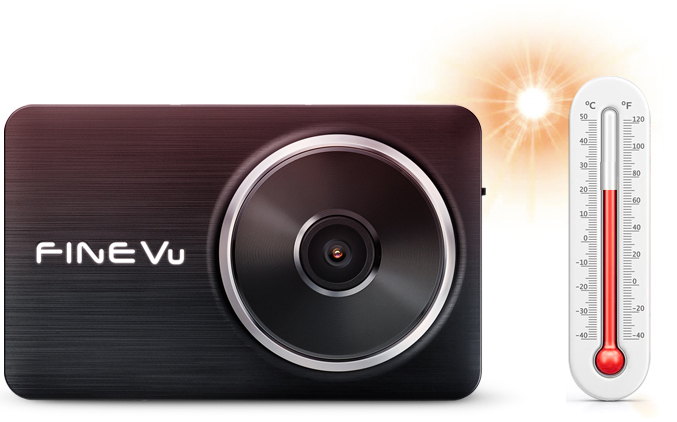

HIGH TEMPERATURE PROTECTION
- FineVu is designed for efficient heat-discharging. In addition, it features high temperature protection function
that safely protect the dashcam and it's video files stored. - When the ambient air temperature rises and exceeds over a certain level,
FineVu is automatically turned off to prevent overheating.

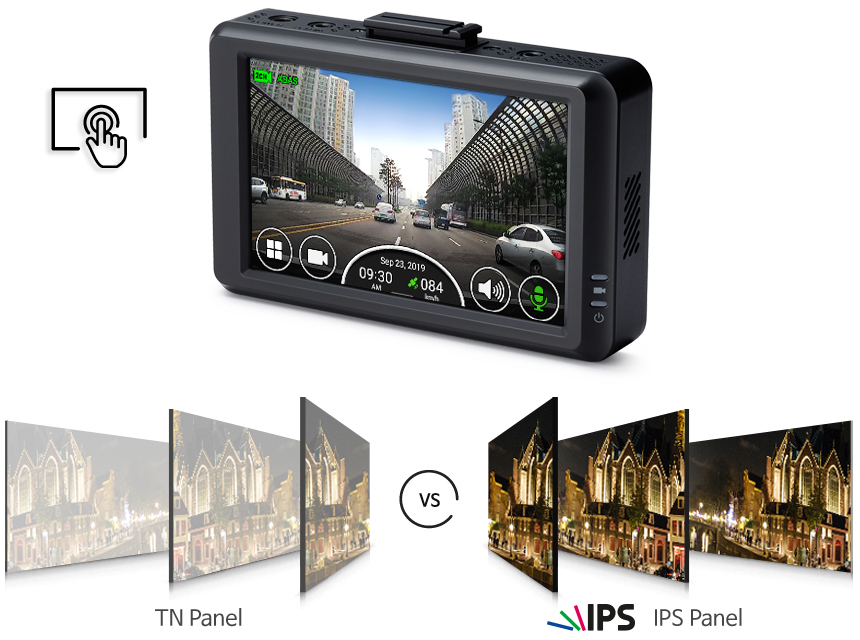

3.5" 800 x 480 IPS LCD with touch
HIGH RESOLUTION AND WIDE VIEWING ANGLE
3.5" IPS LCD TOUCH SCREEN
- High resolution (800x480) of IPS LCD screen is suitable to present clearer and sharper images of Full HD video.
- On the wide LCD touch screen, get an instant video playback, change the settings including visual/audio warnings for ADAS Plus.

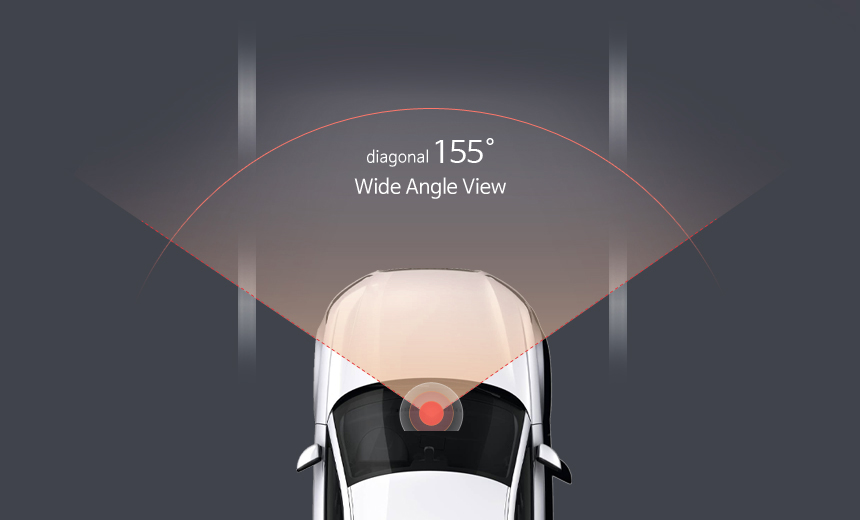

WIDER VIEWING ANGLE
A WIDER VIEWING ANGLE FOR BLIND SPOTS
- A wide view of 155° angle minimizes blind recording area to help record all events without fail.
- FineVu captures the details of any incident with this wide angle view.

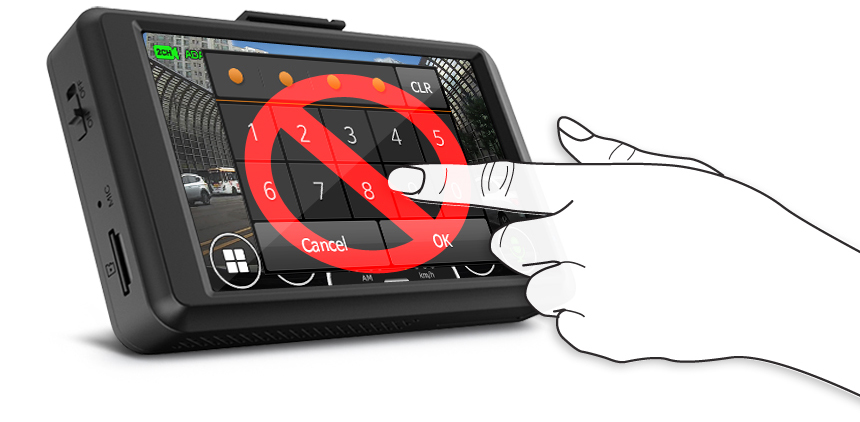

SECRET MODE
PROTECT YOUR VIDEO PROOF WITH PASSWORD
- The driving records of dashcam can be used as a video proof for your legal protection
from the arguements that you may have, as well as contains so many privacy information. - By setting the secret mode of FineVu, the driving records can be protected
by passwords from other's non-permitted access.

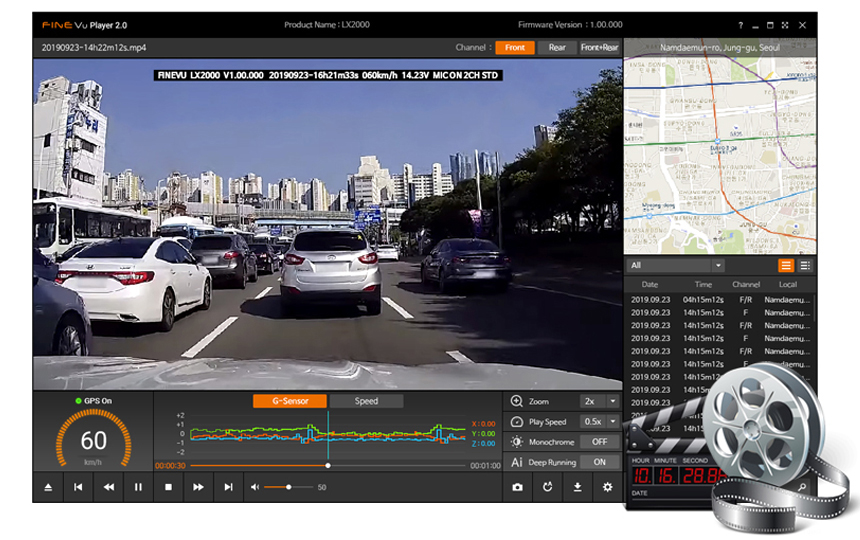

FineVu PC PLAYER
PROTECT YOUR VIDEO PROOF WITH PASSWORD
- FineVu PC player is an intuitive and easy-to-use PC companion software of FiveVu dashcam.
- It allows you to playback, capture, enlarge the images with full resolution and monitor the video records conveniently on your PC.

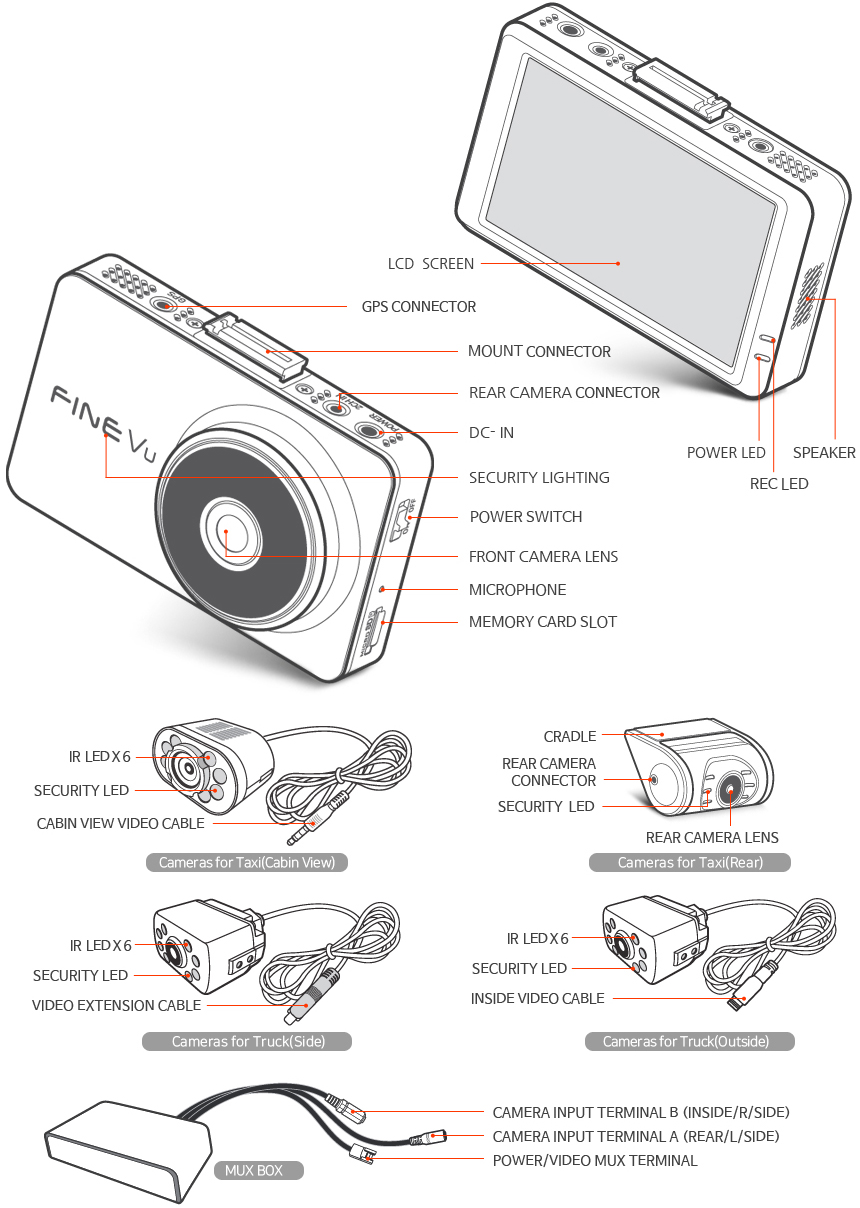

PRODUCT DESCRIPTION

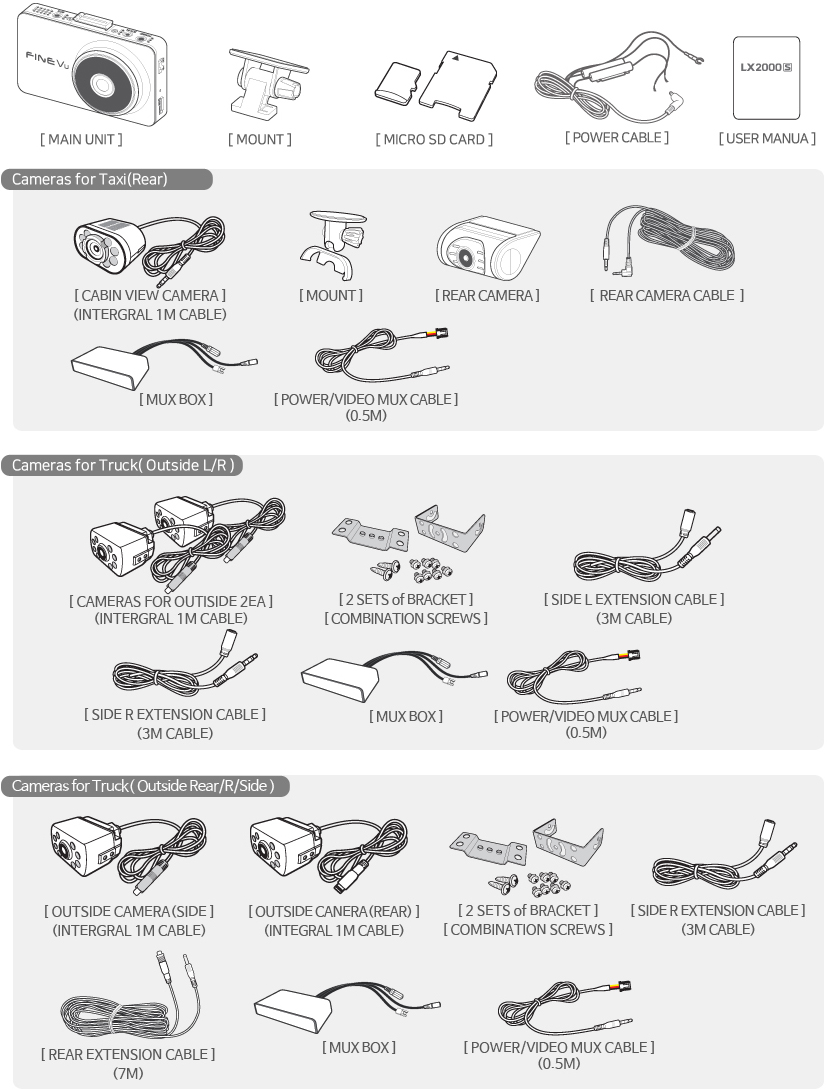

WHAT’S IN THE BOX
※ Please use a FineVu genuine micro SD card, otherwise the camera may be unable to record or recording may be interrupted.
OPTIONAL
SPECIFICATIONS
| Model | FineVu LX2000 S |
|---|---|
| Resolution | Front : Full HD (1920 x 1080) 30fps / Rear : Full HD (1920 x 1080) 30fps |
| Image sensor | 2M pixels CMOS Image Sensor |
| Viewing angle (D) | Front : 155° |
| Display | 3.5" IPS LCD (800 x 480) with touch |
| Recording modes | Driving recording |
| Driving event recording | |
| Emergency recording | |
| Parking (impact or motion detection) recording | |
| Driving time lapse recording | |
| Parking time laps recording | |
| Audio/Speaker | Audio: included inside / Speaker: included inside |
| Battery | Super Capacity |
| Power Consumption | 1CH: 2.2W |
| 3CH(Taxi): 6.24W (IR operation, including MUX BOX) | |
| 3CH(Commercial Vehicle): 7.68W (IR operation, including MUX BOX) | |
| Capacity | Micro SD Card (16G/32G/64G), MLC, Class10 or above recommended |
| Interface | DC-IN (3.5Ø), MUX BOX (2.5Ø), External GPS Connector (2.5Ø) |
| Temperature | Operation Temperature : -10°C ~ 60°C (14°F ~ 140°F) / Storage Temperature : -20°C ~ 70°C (-4°F ~ 158°F) |
| Input Voltage | DC 12 - 24V |
| Dimension/Weight | Front : 98.5 x 60.9 x 31.0mm / 96g |
CAMERAS FOR TAXI(REAR/INSIDE)
| MUX BOX | Dimension | 76.7 x 48.6 x 18mm |
|---|---|---|
| Input Voltage | DC 5V | |
| Operation Temperature | -20°C ~ 70°C | |
| Interface | Power / Video MUX terminal, | |
| Camera Input Terminal A(Rear & L/Side) | ||
| Camera Input Terminal B(Inside & R/Side) | ||
| Cameras for Taxi (Rear/in Cabin) |
Dimension(Included Mount) | Rear : 53.4 x 29 x 42.3mm / Indoor : 47.6 x 23.5 x 38.5mm |
| View Angle | Rear : 120° / Indoor : 125° | |
| Video | Rear : HD 960 x 720 @ 30fps / Inside : HD 960 x 720 @ 30fps (IR LED x 6) | |
| Input Voltage | DC 5V | |
| Cable Interface | Rear : DC jack 3.5Ø to Phone jack 2.5Ø, Length 6m / Insider : Phone jack 2.5Ø, Length 1m | |
| Operation Temperature | -40°C~85°C |
CAMERAS FOR TRUCK (OUTSIDE – SIDE L/R)
| MUX BOX | Dimension | 76.7 x 48.6 x 18mm |
|---|---|---|
| Input Voltage | DC 5V | |
| Operation Temperature | -20°C ~ 70°C | |
| Interface | Power/Video MUX terminal | |
| Camera Input Terminal A(Rear & L/Side) | ||
| Camera Input Terminal B(Inside & R/Side) | ||
| Cameras for Truck (Exterior Side L/R) |
Dimension (Included) | 51 x 26.5 x 37.75mm |
| View Angle | 128.1° | |
| Video | HD 960 x 720 @ 30fps (each IR LED x 6) | |
| Input Voltage | DC 5V | |
| Cable Interface | Outside(L) : DC jack 3.5Ø to Connector 7mm, Length 3m | |
| Outside(R): Phone jack 2.5Ø to Connector 7mm, Length 3m | ||
| Operation Temperature | -40°C~85°C | |
| IP Class | IP 69K |
CAMERAS FOR TRUCK (OUTSIDE - REAR&SIDE/R)
| MUX BOX | Dimension | 76.7 x 48.6 x 18mm |
|---|---|---|
| Input Voltage | DC 5V | |
| Operation Temperature | -20°C ~ 70°C | |
| Interface | Power/Video MUX terminal | |
| Camera Input Terminal A(Rear & L/Side) | ||
| Camera Input Terminal B(Inside & R/Side) | ||
| Cameras for Truck (Exterior Rear/ Side R) |
Dimension | 51 x 26.5 x 37.75mm |
| View Angle | 128.1° | |
| Video | HD 960 x 720 @ 30fps (each IR LED x 6) | |
| Input Voltage | DC 5V | |
| Cable Interface | Outside(Rear): DC jack 3.5Ø to Connector 13mm, Length 7m | |
| Outside: Phone jack 2.5Ø to Connector 7mm, Length 3m | ||
| Operation Temperature | -40°C~85°C | |
| IP Class | IP 69K |
